A Ransome & Rapier Crane

Readers of this blog will recall that my father has a significant interest in breakdown cranes; he has published a series of books on them and is the honoury president of the Breakdown Crane Association.   As a result of this, a few years ago, he took a call from Bachmann when they started to research the possibility of filling a gap in the ready to run scene for a accurate breakdown crane.  He delighted in being sworn to secrecy on this until the model was announced and now, some five years later, it has finally arrived on the shelves.

So after a somewhat unsatisfactory retail experience with Rails of Sheffield (which I won’t be repeating, there are plenty of other retailers out there), an example of a Ransomes & Rapier 45 ton crane arrived not much more than a couple of hours spare so that it could be parcelled up in its Christmas wrapping for my father.  Now that it has reemerged, it is time to take a look at it.

DSC00133 (2)

Prototype

The prototypes originate from the early years of the last world war and were initiated by the British Government; in part in anticipation of a lot of emergency repairs being required following enemy action and also for use on the continent once a toehold had been achieved.  Initially a total of six were made, going to the SR and GWR but subsequently a further order of nine were made, mostly for the military but with a couple for the LNER and another for the SR.  The example I bought being from the latter batch, being initially based in Gorton on the ex GCR system.

ransomerapier45tonsteamcraneds1580ropley23rdjanuary2016

There were detail differences, with many of the railway company vehicles utilising standard components from their eventual owners.   The valve chests for the cylinders moved to the exterior in the later batches and the operation of the loading of the relieving bogies became hydraulic latterly.  The biggest changes, however, related to the match wagons where there was both variety of arrangements of tool boxes at the time of building and generations of modifications thereafter.

ransomerapier45tonsteamcraneds1580ropley23rdjanuary20162 Carl Watson

The cranes lasted until the mid 1980’s and a number of them survive in preservation, so if you want to see the real thing you might want to head to the Midhants Railway (on which the prototype photographs were taken and reproduced with kind permission of Carl Watson), the Bluebell Railway, the Great Central Railway, the North Yorkshire Moors Railway or the Swanage Railway.   Below is a link to a video of the Midhants crane in action:

Model

The first thing you notice with the model is that it is some way from the toy train end of the model train market.  The prototype is smothered in detail; with the fine bracing between the sides of the jib, the gear trains, axleboxes and flywheels all being a bit out of the ordinary for the ready to run market.  Bachmann have had a really good go at this and for the greater part they have got it right – very few could model a crane as well as this.  There are, however, several compromises made to enable them to be operable.  This particularly shows at the bearing points at the head of the jib (exposed metal when they shouldn’t be visible) and on the crankpin nuts to the flywheels (way too big and hexagonal).  I understand why this was done, but it sticks out to my eyes!  Some touching in of paintwork will help (but not be perfect) and the replacement of nuts with something more subtle should be possible.

DSC00135 (2)

The detail is very delicate and the model needs to be handled very carefully as a result.  Even the most careful (and I don’t count myself in this group) are unlikely to keep all the detail in place on any model that does not merely sit in the display cabinet.  With a recommended retail price of £250, substantially more than any other product that is not filled with motors & electronics, it is doubtful that too many will end up in the hands of children – maybe that is just as well!

The model I bought, the early BR model in black – Bachmann ref SKU: 38-802, has a match truck without tool boxes.  This is correct for the specific crane post the early 1950s but what is not is the missing insides to the splashers.  This seems to be a compromise to accommodate OO wheelsets without making the splashers excessively deep.  It is easy enough to fill in the open spaces if you model in one of the wider gauges and it will make a big difference.

DSC00139 (2)

The painting and livery is particularly fine on the model.  Even better there are some exquisitely delicate etched plates that can be applied on top of some of the plates.  I suspect I see the shadow of Mr Hanson on them.

Options

It looks realistic to get P4 wheels into the crane underframe and definitely so for the runners/match wagon.  I would, however, be concerned as to whether a four axle vehicle could survive all but perfect track in P4 and how many of us have that?  I suspect that it will all be very tight too, so some pretty large radius curves would be needed if a P4 model can get around them.  Of course I will have a go, but it is not high on the to do list at the moment!

DSC00140 (2)

I think it is only a matter of time before someone looks at trying to motorise the crane.  I think I will say good luck to them!  Getting micromotors in might be possible for at least movement along the track but that still leaves slewing of the crane deck, raising of the jib and raising of the hook to go – getting another three in looks pretty difficult to me!  The model does include internal hand operated mechanisms for the latter two movements – there are access panels that pop out to reveal a socket to receive a hand wheel.   Thus, it is realistic to stage scenes, but not (in my eyes anyway – I really do look forward to someone having a go!) to make a fully operating model.

DSC00136 (2)

What is a must though is to add the paraphernalia of clutter the real cranes acquired in operation.  Photographs show that they typically attracted lumber sections, jacks, chains and tarpaulins as if they were magnets.  Cranes, not being front line stock in the public eye, tended not to suffer repaints very frequently and as they stood outside, they did weather and pick up corrosion spots.   So any self respecting modeller needs to do something about how clean they look.

Although there is a very long in the tooth model crane from Hornby, it is somewhat of an uncomfortable marriage of several different cranes (the really old Hornby Doublo diecast version is better but quite crude), so does not cut the mustard.   There are a limited number of kits for other cranes – notably the D&S Models Cowen Sheldon 15 ton breakdown crane (an example of one might grace these pages eventually!) but these are full on kits.  Thus Bachmanns cranes are not only attractive models in their own right but they have a field fairly clear of competitors.

untitled

If you want the book on the prototype you need volume 2 of my father’s book – at present it is out of print but it is hoped with a bit of pressure on the publishers, Crecy, they can be persuaded to do a further print run.

The Bachmann crane is presently available in an SR livery, a GWR livery and then a pair of BR liveries – the 1950s livery shown above and a later gulf red livery.  An example of the latter is below:

IMG_4643 (2)

Railway Cranes – Volume 3

I am pleased to announce the forthcoming publication of volume 3 of my father’s series on railway cranes. This will be available from mid September and on the 23/24 September it will be formally launched at Scaleforum with my father in attendance if you want to speak to him.  This will be on the Crecy book stand along with a selection of their books (including volume 1 if you haven’t got this, volume is out of print at present).

For this volume we move away from breakdown cranes to permanent way cranes. This is a big topic and has even less standardisation than breakdown cranes (and there ain’t much in that!). Thus the book is not intended to be a comprehensive review of all such cranes but rather more a review of the main types and development of them.

The book covers from the relatively early days (given the scarcity of material on early cranes, this is a slightly relative concept) upto the contemporary Kirov cranes.

If you can’t make it to Scaleforum, then it can be ordered via your preferred bookseller or direct from Crecy http://www.crecy.co.uk/railway-cranes-3.

The one book in the series that is still to be done is one of cranes mounted on engines. My father does not feel that he knows enough to write this one so if there are any that feel that they (or collectively) know sufficient, I know a publisher that would be interested………….. (PS this is not a mikey take, it would be great to finish the story!).

Early Pattern Lookouts for Dia 38 HR Goods Brake

I have been doing more with the Scrap Tank, but I haven’t managed to take any pictures due to needing flippers outside yesterday.  So instead, lets see something else that was on the test etch that I have recently had returned.

_DSC0284 (2)compress

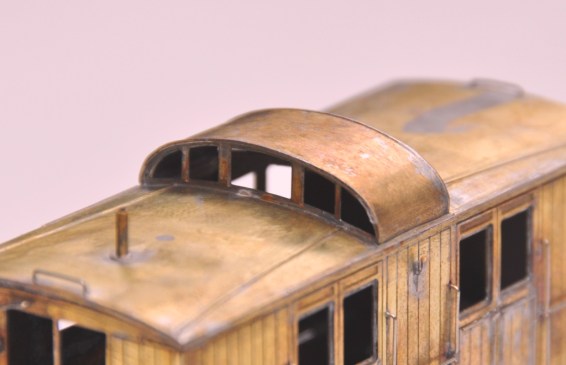

This is the early style lookout for the dia 12 Highland Goods Brake.  As originally built these lookouts formed by a single slot to the centre of the roof and were fully glazed to the front and back.  In use guards complained that they caught their heads on the lip of the roof as they climbed in.  To overcome this, many of the vans were rebuilt to include ramped approaches to the centre of the lookout were incorporated, to become what was arguably the signature feature of the Highland’s rolling stock.

Microrail produced a kit for this van 30+ years ago and this included the latter style of lookout.  I had a pair of these kits and ended up acquiring a third one and I felt I really could not have another one just like the first two!  So I had an inspiration and thought it would be fun to make the early pattern lookout.  The old man’s book came out and a scan of the drawing loaded up into the CAD machine.  From here it was a relatively simple exercise to draw up the difficult bits, the glazed screens, and the more simple roof.

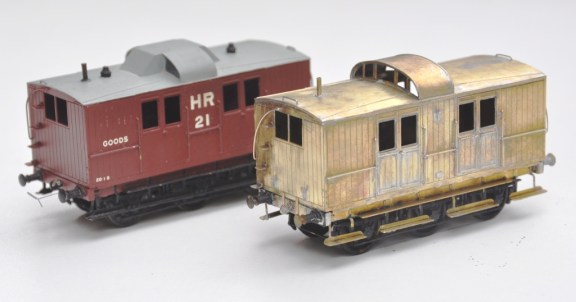

The components went together easily and do give a very different feel to the Microrail kit as intended.   I also made a number of other adjustments, to the footboards and also the panelling, to make the model both different and authentic.  The latter, the beaded panelling, is a right pain in the whatsit and took much longer than any other element of the assembly – so don’t to it unless really want to!  And this is what it looks like next to the kit as originally intended, with the later style lookout.

_DSC0286 (2)compress

I will be making these available via the Miscellany Models site shortly, when I have done enough of the other elements I am working on to do a production run.  In the meantime, I do have a pair of very slight seconds (there is a tiny bit of over etching – almost impossible to see, the pictures of my vehicle have the same problem).  These are available for the price of the metal; say £2.50, plus postage (which won’t be much).  Ordering is via here:  http://miscellanymodels.com

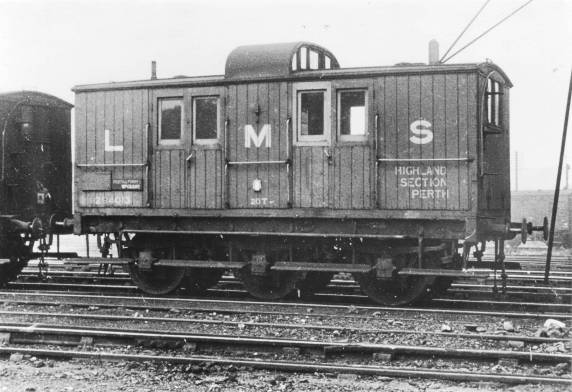

And the real thing looks like this:

HR.GBV4

(C) Bill Steel

Wetting Your Appetite

Slightly less modelling of late; although I did manage to get a Shapeways order off for the elements of the loading crane, signals and water column and I hope to do the same with an order for etchings tomorrow.

With Christmas coming up, we have done a little travelling done to visit people and we popped down to see the old man on Saturday.  He has now had all of the proofs for his next book back and they look very good.  Those of you who have seen his previous books will know that there are lots of photographs, drawings and text; laid out in a logical and easy to use fashion.  They are designed to be books for modellers and I think they succeed.

So this is what it looks like; the expectation remains that it will be launched at the Glasgow show in February and judging by the proofs things are on target for this:

Carriages and Wagons

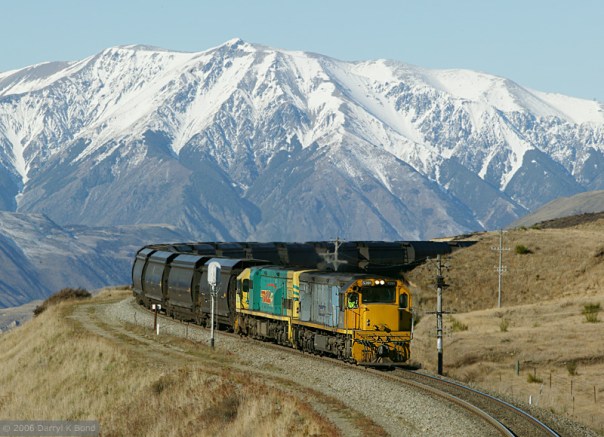

The reason we are cracking on with doing the family is that we will not be here for the Christmas and New Year; we are off to somewhere exciting; where the trains look like this…………………….

Midland-line-Cass-Bank-1

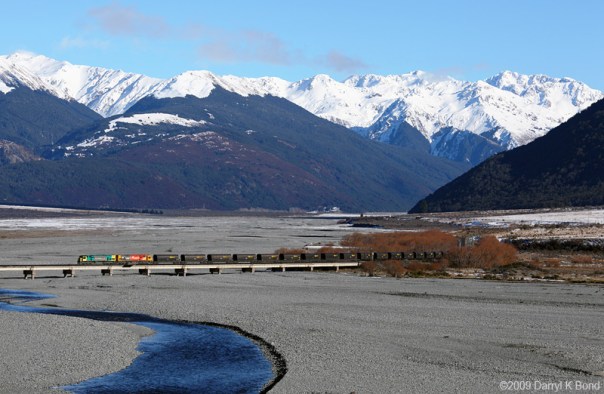

and go through scenery like this………..

Midland-line-Waimakariri-river

So no more posts until the new year………………………

Merry Christmas!



Railway Breakdown Cranes – Volume 2

The second volume of the old man’s book on Railway Breakdown Cranes was published last week.


This substantial tome is full of high resolution photographs and drawings of all the breakdown cranes built for the railways in the UK.  It deals with cranes that have relieving bogies, which means mostly cranes from the mid 1930s.  Volume 1 deals with the earlier cranes that did not have relieving bogies (although there was a period where both types were built).

I know I am biased, but it is a really good book.  Available from Noodle Books (http://www.noodlebooks.co.uk/index.htm)  and I understand that 190 were sold in the first weekend!  I also understand that something like 1700 of the first volume have been sold, so there are only 300 left of this!

At the moment this will be the end of the series as the two volumes cover all of the breakdown cranes built in the UK.  There is a slight chance that there will be a volume 3 on permenant way cranes though – perhaps, maybe!
