Fuel for Thought

Obviously, where there is water in a locomotive yard, there really ought to be coal too.

The Highland, like many other railway companies of the time (certainly the Scottish ones), sought to stockpile coal. This was presumably insurance against coal strikes and allowed them to purchase coal at times when the price was favourable. Thus, quite substantial coal stacks where very much a feature of shed areas in the pre-grouping era. Typically, these were arranged in engineered stacks, with the sides formed in “dry-coal walling” and then loose coal behind. I can’t recall ever seeing this modelled, so I though I would change that!

Coal loading dock

The actual structure of the loading bank was formed in plasticard and Wills random stone sheets, but with the mortar courses softened as I described for the water towers. The shape of the coal stack was formed with a piece of house insulation left over from a DIY job and then real coal used to form the effect of…..err……real coal. Actually, real coal does not look quite like real coal without a bit of effort. It does shatter into angular but irregular lumps like real coal (especially if lignite coal is used) but its glossiness does not scale down. However, a vigorous brush with generous amounts of soot black weathering powder takes the gloss back and the whole becomes quite convincing. You do feel as if you are going to get pretty filthy if you go up onto the bank – and until the whole is fixed with matt varnish, you would!

Coal loading bank and coal hoist

Individual coal chunks were glued in place to form the wall structure. To get the effect, it is not enough to simply scatter the coal onto a bed of glue each chunk has to be laid individually with care taken to lock it into the course below – just like a real dry stone wall. Thus, the vertical walls of this took about a day to complete, scattered over about 8 stints because it is necessary to let the glue dry after every couple of courses to stop the layers collapsing. It is then possible to scatter the loose material behind the walls onto a layer of glue – the above picture shows the contrast in effects between the two methods.

Coal loading

But it is hard work shovelling coal into tenders, especially as the locos got larger and their tenders higher. As befitting such an important place as Glenmutchkin, it has all the modern amenities for coaling engines, a hand crane and a large bucket! In this case, I have fitted servos to this so that it operates – partly as a bit of fun and also to slow things down in the yard to a more realistic pace without it getting too boring for the viewer.

The underside of the crane, with the operating servos

The crane operation was achieved by way of three servos – one to rotate it and then one each for the front and rear of the coal bucket. These are all mounted onto a cradle that is rotated by the former – thus as the crane rotates so too do all the servos and there is a quadrant shaped slot in the base to the rear of the post (just visible in the picture above) that allows the cables to rotate too without snagging.

The base of the crane; the projecting rod telescopes into the actual crane (and there is a rod inside the crane post that telescopes into this too and appears below and onto which the servos clamp
The crane and its mount

The cradle is mounted to a solid rod that is in turn secured to the actual crane. This then slides into the rod that can be seen projecting from the base in the picture above. This means that there is limited strain on the crane or the mount as I had feared it might otherwise snap with any heavy-handedness on my part (something I am prone to!). The rest of the crane was made with brass hollow section and pulley wheels from Bill Bedford. A series of guides were made of small section tube on the pulley wheels, at the winding drum and across the jib to retain the operating cables.

The coal crane, bucket and operating servos

The bucket was fashioned from metal sheet and is filled with low melt solder to give it as much weight as possible. It is secured to the servo arms with invisible thread – which is a nylon seamstresses material used for making invisible stitches. It comes in both clear (which really is invisible) and black, I used the latter. It is much better than cotton thread as that has a furry finish that looks terrible after a time or if it is painted. It is, however, very fine and rather wriggly to knot, so using it involves a certain amount of cussing!

And this is what it looks like in operation…………

A little of the bouncing about of the bucket is caused by it sitting on my servo test rig, so the act of changing the switches imparts a little vibration. Hopefully, when mounted on the layout this will be less obvious.

I do still need to do the final detailing on this; tools, a bit of discarded debris and a couple of fellas from Modelu standing around doing nothing (because static people in animated poses look silly on a model layout!).

Only the printable words for this Wednesday!

Hmmmm……..

A signal imitating a Fresian cow was not the effect I was after…………..

IMG_6324 (3)

Halfords etch primer is obviously not that etchy!……………..   So someone will be waiting a tad longer for their signal than I thought…………

And now a Midland signal…..

Whilst the NER signal from my last post gets itself painted, I turned my attention to the next few signals – in this case these will be Midland lower quadrants.

A lot of the character of a signal is in its finial and if this isn’t right then the model won’t convince.  In addition, they are also very vulnerable so need to be durable.  Therefore, my conclusion is that white metal finials do not cut the mustard – they are too delicate and too clunky.  Thus, in this case I decided to make my own – I came up with this which starts with with some interlocking etches:

IMG_6098 (3)

And then a bit of brass tube as a collar at the base

IMG_6107 (2)

The Midland’s style of signals do have a few idiosyncrasies; one of which is the way that blinders are fixed.  Instead of being fixed to the spindle these are secured to the arms and wrap around the lamp.  This can be more clearly seen in the photograph below.

IMG_6131 (2)

The other key change was in the manner in that the arms are secured to the posts.  Instead of being pined through the arm and secured at the rear, the Midland used a bracket to the front of the post with a plate that wrapped around to the front of the signal to support the arm to the front.  This can be seen in this view of a rather nice gallows signal at Butterley.

Butterley_CF_Station,_Signal_Box_&_bracket_signal_(6097949978)

The bracket can be seen in this view below and I then created a pin that fitted into the bracket and slotted over the spindle.

IMG_6191 (2)

I have bought a new light box for taking photographs in. Whilst I am still getting to grips with it, when it works it does produce much improved pictures of models. These almost look like an images of a 3D model on a computer screen.  The pliers at the bottom of these views do rather give the game away!

IMG_6192 (2)

The Midland were a bit odd in their choice of colours for their signals. The posts were “primrose yellow” but this quickly dirtied to something akin to cotswold stone is what the book says, so this does give something a little different.  This is my representation of this with a decent dose of smokey dirt – when you look at contemporary photographs many signals were not only dirty but entirely smothered in smoke.  I haven’t gone that far yet, but its going to need to be done!

IMG_6267 (2)

IMG_6266 (3)

As can be seen, this still needs connecting to the servos and the touching in of the paint on the parts that I fit after the main assembly (the balance lever and the plate that wrapped around the signal arm).



Let There be Water…….3 – Now There is!

More progress has been made with the pair of water tanks and they have now reached the stage where they are effectively finished.

IMG_6200 (2)

The stonework was painted by picking out each stone in different colours.  I think there is a real art to this as when I see others do this, I often think the colour differences are unrealistically abrupt.  I find the trick is to use a core of two colours that are close to the general colour that you want – in my case Humbrol Matt no 5 & 64.  Put these in separate palates on a mixing dish and dip into these to create a combination of the two.

IMG_6212 (2)

By selecting two relatively close colours, you can alternate from all one to all the other and any mix in between.  Adding very moderate amounts of a stronger colour difference, in my case Humbrol Matt 66 and 62 which are a darker grey and a leather brown adds a bit of variety but in each case they still need to be mixed in with the two core paints to keep the toning consistent.

IMG_6230 (2)

Even with this work the colours didn’t seem quite real, so I completed two additional steps.  The first was to use some matt varnish that I knew the matting agent was a bit gone on – this gives a slightly translucent milky effect over the whole and drew the colours together a bit.  The second was to use AK Abteilung 502 weathering powders – black smoke, ashes grey, gunmetal and rubble dust (primarily because these were the only colours I had!).  These need to be used with care, as it is easy to put way too much on and you can’t generally get it off again!  However, at low level and to the coal bank I have been pretty liberal with particularly the black smoke as such areas were far from clean!

IMG_6220 (2)

The weathering to the water tanks was dealt with slightly differently, although it also started with the use of the acrylic varnish with the defective matting agent (that’ll be how I found out it was defective!).  I then used a Humbrol dark grey was with downward brush strokes and then wiped off with a piece of kitchen roll, again with a downward stroke.  A few additional marks, especially to the panel joints, with AK Interactive weathering pencils.

The water effect was another accident flowing from the defective matting agent – the milking was far from desirable on the black base coat of paint.  Thus, I wiped it off once it was semi dry and I got most of it but where the remainder was still there, it added a bit of texture to the surface, as if there was a little disturbance to the water that affects part of the surface not the whole.

IMG_6233 (2)

By reference to the prototype, I made a heating stove flue and spigot for the water bag from brass rod.  To form the bends it was necessary to have a pair of additional tubes inside each other to stop the tube collapsing on the bend,  The canvas section of the leather bag was formed by a piece of heat shrink sleeving but with a little 5 minute araldite in the centre such that as this starts to cure a degree of shape can be put into it and once fully cured it will stay in this shape.

IMG_6218 (2)

The operating rod was based on that still largely apparent at Altnabreac and I have assumed this also had a ladder even if this has now gone.  There is no watering bag to the smaller of the two water tanks as I propose to have some water columns, but that is a story for another day!

IMG_6231 (2)

A further story for another day is the rather odd post sitting in the middle of the coaling bank; but that story will be fairly soon!







Benfieldside’s Missing Signal

When my friends acquired Benfieldside, it had suffered a bit of damage, notably to its signals – in essence it was this that got me volunteered for their restoration!  One signal that puzzled us, however, was the up starter which was missing altogether and we could not unearth any photographs of it.  Ultimately, we decided that it should be a two doll signal to also control the adjacent bay (which did have a signal, albeit inoperative) – so I have set to in order to fill this gap.

The line is set in Cumbria and is an imaginary westward extension of the Newcastle & Carlise line.  In theory, therefore, it should not have the heavy cast iron brackets that the NER used.  However, in reviewing the NERA’s signalling book, it became apparent that there were quite a lot of strays of signal designs, so I had an excuse to build one!

IMG_6038 (2)

As this particular signal is going to be platform mounted, I did not need to sort out a mount for it and moved straight to the post and bracket, the latter being by MSE which I had in stock.

I then moved on to the prefabrication of a pair of dolls, each with slotted posts.  This is made up of solid square section filed to a taper which is then cut and each end then has a tongue filed on it onto which flat plate is soldered either side to create the slots.  I used a variety of temperature solders to ease this process but it was not easy – I did have one gum solid which resulted in a need to dismantle it and start again!  As alluded to in the previous post, as these are slotted posts I had to depart from my usual practise of fitting the arms after painting as it is not otherwise possible to solder them to the spindle for the arm.

IMG_6035 (2)

As mentioned in the last post, I came up with a bit of a dodge to successfully (well, in two of three cases!) to solder the arm to the spindle without gumming it up.   By extending the ear that forms the point at which the operating rod attaches to the arm forward a bit (see the line below), it provides a point at which the soldering iron can be touched.  If you use a slight excess of solder this allows the heat to transmit to the spindle and make the soldered joint.

IMG_6032 (2)_LI

And this is what you get with a prefabricated doll, ready for the next stage of assembly.

IMG_6026 (2)

And below of the pair of dolls now inserted to the landing.

IMG_6062 (2)

Even at this stage, there is still a lot of building to do as there are handrails, the main ladder, steps and ladders to the dolls, the operating mechanism transferring the movement to the dolls all to do. In respect of the latter(I used rocking cams in this case – you can just see the use of some handrail knobs as the bearings in the photos below, the cams will be fitted after painting.

IMG_6176 (2)

Slightly peculiarly, the NER built their landings in front of the arms whereas all the other signals I have yet built have these in the rear (excepting gantries, which can be either or both!). This view shows this most clearly.

IMG_6179 (2)

The main ladder is not visible in the views as I have made this detachable because it is much easier to spray paint these (and better, it is not easy to get a thin coat of paint by brush application and it thickens up the fine detail of a ladder too much.

IMG_6186 (2)

The grey primer is pretty cruel to modelling efforts but on the whole, I am pretty chuffed with this!



Tatty’s Top Tips – Signals

A mere three weeks ago, but a lifetime in the past now that we are in the middle (or more worryingly, perhaps just the beginning) of the Covid-19 crisis, I was a demonstrator at the joint EMGS/Scalefour Society skills day.   These skills days are not really exhibitions and are instead aimed at passing some skills on to the visitors – thus they are primarily a hall full of demonstrators with only the odd layout or two to break up the rows of desks.

Here I am, in a shockingly creased shirt (!), and as you can see, I am demonstrating signal construction.  I am pleased to say that at the skills day I had a solid stream of people engaging with the topic all day; so much show I had to pull down the shutters for a brief lunch as otherwise I really would not have stopped all day!

IMG_5674 (3)

By way of preparation for the event, I thought about what I have learnt about building signals and distilled a list of my top tips.  These proved to be the cornerstone of my conversations with people at the Skills Day so I thought it was worth repeating them here on the blog.

Planning Ahead

  • Conceive how you are going to mount the signal; where and how, what is above the ground or below the baseboard – which might well mean you also need to;

IMG_6043 (2)

The base and mount for a two movement servo controlled signal

  • Decide how you are going to operate the signal, how is the drive mechanism to be mounted and what does it need to be connected to mechanically/electrically;
  • If you are going to illuminate your lamps, you need to decide how you are going to run the wires to the LEDs or fibre optic cable. It is possible to use the post as a common return but you still need one wireway;
  • Consider how the movement is to be transmitted (especially bracket signals) and how you are going to replicate this? Multiple movements in close proximity to each other can lead to interference, compromises to reduce this risk are sometimes desirable (especially for triple or more movements in close proximity);
  • Conceive how you are going to paint and assemble the signal before you start – it is generally easier to paint arms and ladders before you assemble them so it is possible to create sub-assemblies to be attached later – the touching in of local areas of damaged paint caused through assembly is a small price to pay for the ease of painting the remaining areas;

IMG_6093 (2)

A Southern rail built home signal; the post was formed of two pieces of nickle silver rail.

Construction

  • Tight, tight, tight – the most important part of building a signal is to keep all holes of operating parts as tight and snug as possible as slack leads to sloppy movement;
  • You will use a lot of fine drills, down to 0.3mm, and a good quality pillar drill will mean you break rather fewer of them!
  • Use the file up the length of the post not across it as much as possible – the files leave less scars and any that do occur mimic the grain of the wood;
  • Pre-form or pre-drill elements such as balance weights, holes to the posts or landings early on before they are assembled when it is easiest (well potentially!);
  • The prototype of most of the components to a signal are pretty delicate with fine sections; thus, to capture their character these needs to be similarly fine, however:
  • There is a trade-off to make with the operating components such as balance levers which are typically best made over scale and with laminated brass to give them more strength;
  • Generally, build the bigger more robust elements first and potentially alter the build sequence in the light of thermal mass and whether adjacent items might be disturbed by later additions – consider using different temperature solders and prefabrication of elements such as dolls with all of the lamps/landings finished;

IMG_6026 (2)

A prefabricated doll and arm – I wouldn’t normally fit the arm until after painting but this is not true for slotted post signals

  • Don’t use the flat etched ladders, they are too flexible to look real.  Either use the built up versions or solder 0.3mm wire on both front and back of stringers and file the outside face flat – they look more realistic and are more durable.

IMG_6056 (2)

A flat etched ladder with 0.3mm wire being soldered to the stringer

  • Lots of delicate parts and complicated sections means that ultrasonic baths are really helpful for cleaning without damaging elements;

Slotted Post Signals

  • Not the easiest because of the need to solder the arm to the spindle inside the slot.  Use a laminated piece to the ear that is the point at which the operating rod attaches to the arm and extend it cross the back of the arm by 3mm so that it is would project beyond the slot slightly.  Be liberal with the solder but make sure that the rubbing faces are cleared of any excess.  Wrap the arm in cigarette paper and insert it into the slot.  After the spindle has been inserted, touch the cigarette paper with light oil and allow it to soak through.  Then put a little flux on the laminated ear and apply the iron.  The heat will transmit along the solder joint and reach the spindle.

Operation

  • Protect the signal from excess throw; they are delicate – therefore set the servo up to an approximate centre point through before connecting it to the model;
  • Leave room to be able to see the signal as you are setting it up, otherwise it takes ages and a lot of bending under the baseboard;
  • If you are going to illuminate your signal, understand what the right colours would be – oil lamps are relatively dim (so you need to resist down the voltage) and quite yellow (so modern LEDs need to toned down).

Dimensions

Dimensions were not standardised even within a company, let alone between, so offering directions on dimensions is dangerous – all I will say is these dimensions are commonplace:

  • Single post wooden signals – 6” square at the top and then tapering out 3/16th of an inch for each foot of height (1.5% or so)
  • Wooden doll posts – 7” square at top and tapering as before
  • Main post for wooden bracket signals – 10” at the top and then tapering as before
  • Single post tubular signals – 5 1/2″ to the upper portion and 6 1/2″ to the lower portion.  The height of the lower portion varied with the height of the post (for details, see LMS journal no 4)
  • Arm – centre pivot – 1′ 6″ from the top of the post; second arms 6′ 0″ below that;
  • Spacing between dolls – 6′ 0″ or 6′ 6″ (less for shunt arms)
  • Height of handrail to landings – 3′ 0″

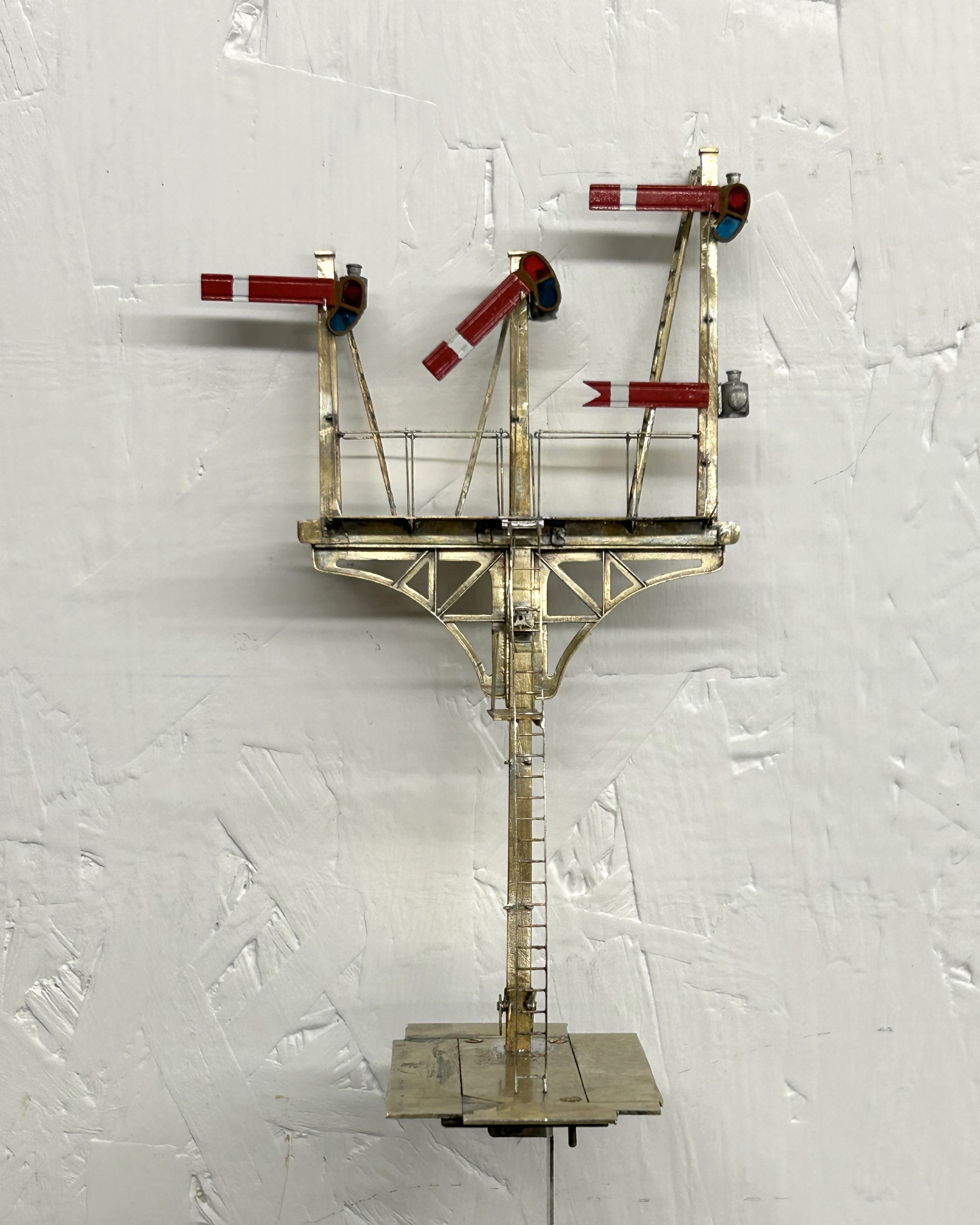

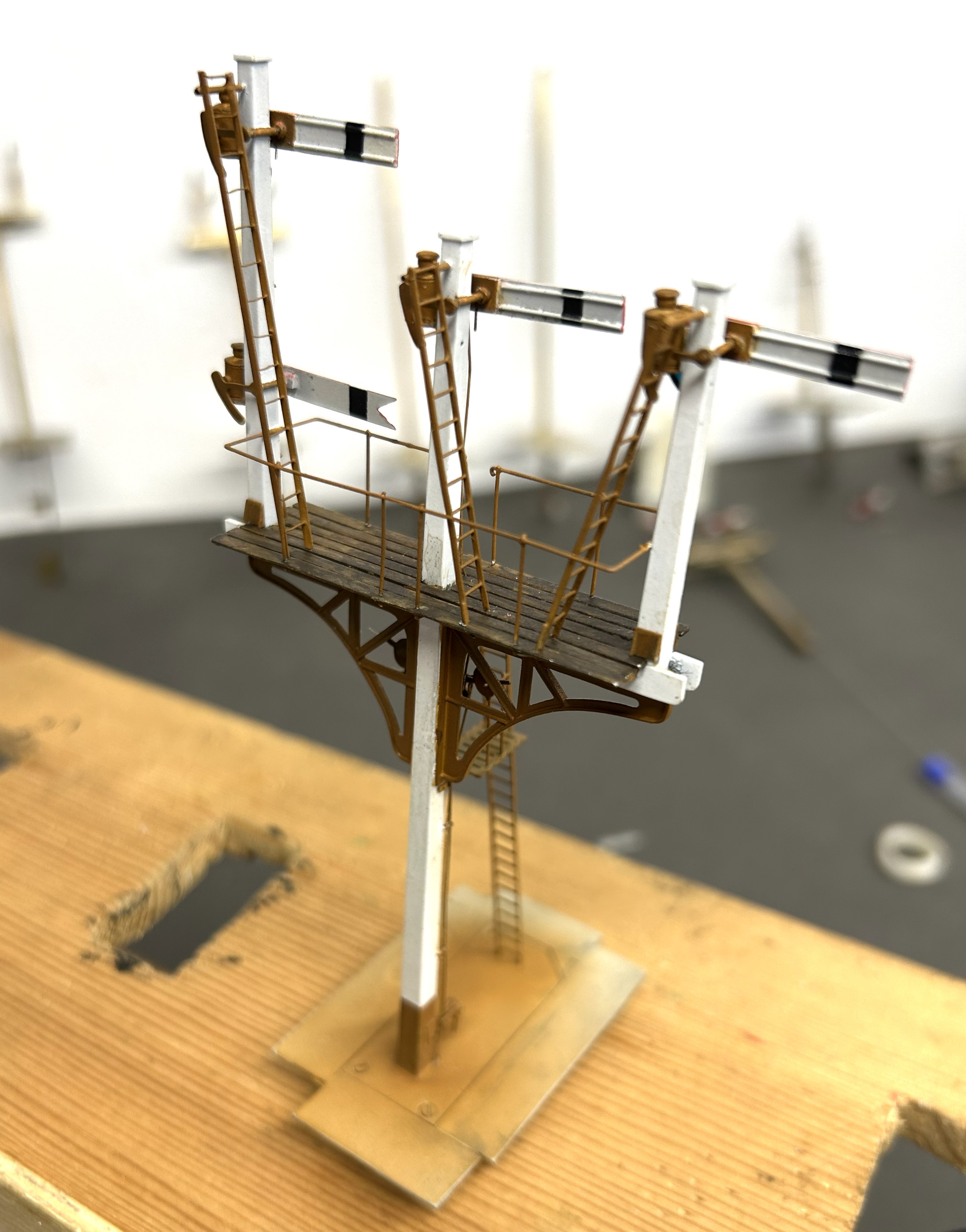

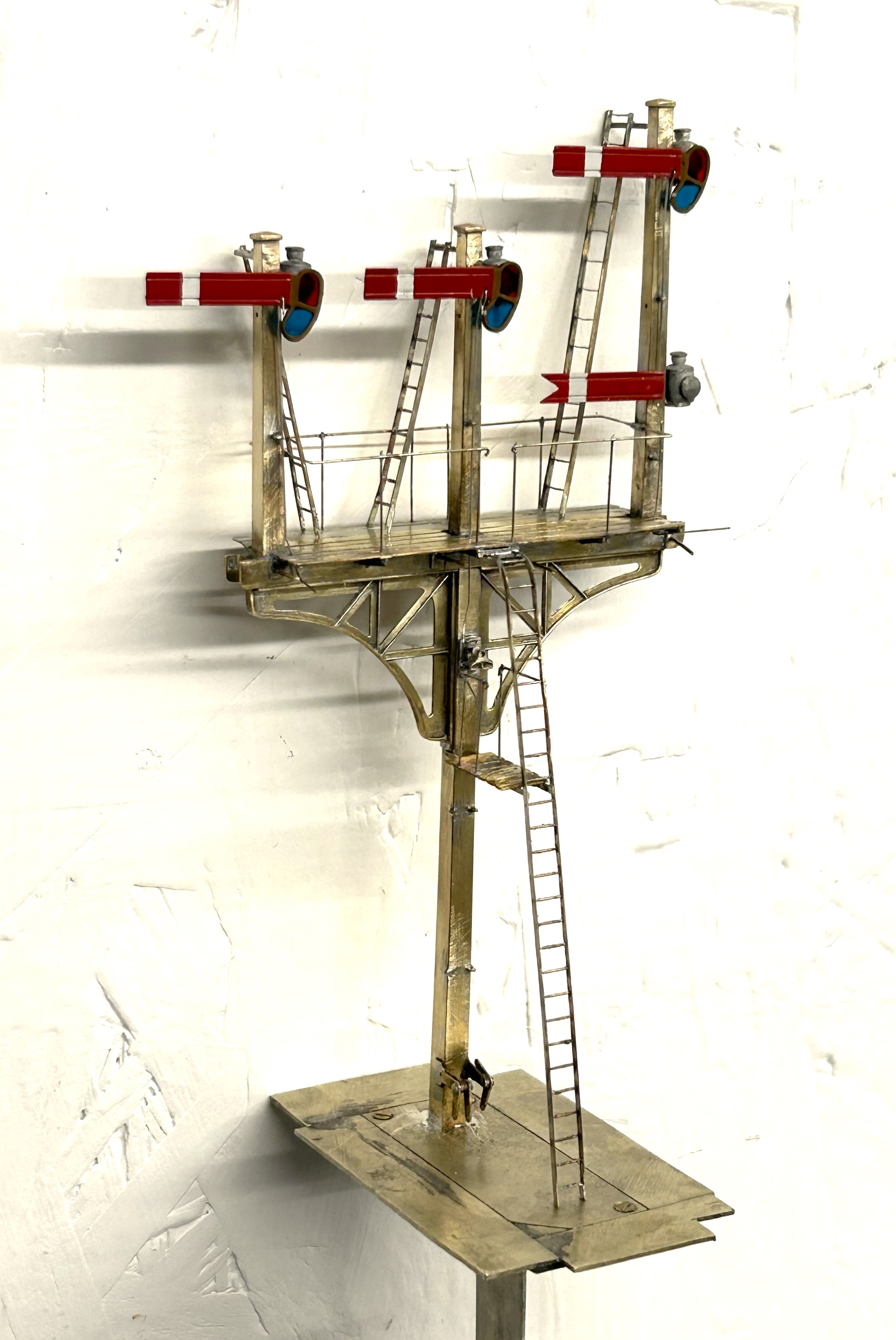

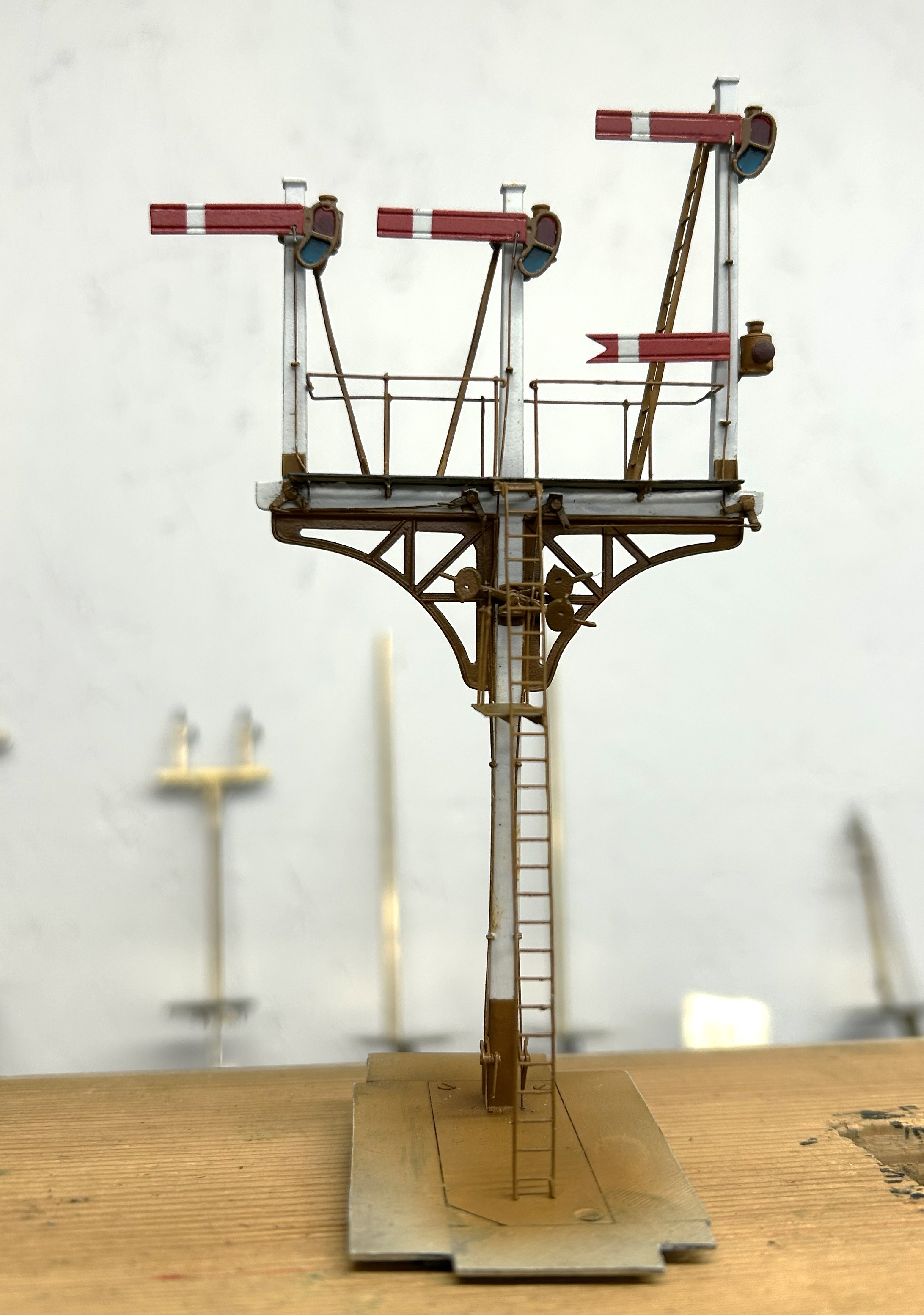

GER WE0476_McK&H_E476_GER_triple_bracket (2)

A GER three doll bracket signal

Let there be water (and coal too)……part 2

One of my pet hates on model railways are buildings that float a fraction above the ground because they have been plonked in situ, not bedded in.  For me, it completely destroys the illusion and I can get quite wound up about it when I see it (…..and it is pretty common, so this is fairly often!).

Occasionally, I actually do attach the building to the baseboard and “scenic in” the ground around them but more normally I construct a base into which the building sits.  This gets embedded permanently and then the building sits into a slot that is formed into it.  I have also seen the building being built in two parts, with the base being affixed to the ground and the building slotted onto them.  Peter Bond did this for me with the signal cabins for Portchullin.  This is the base for the larger water tank:

IMG_5874 (2)

The large water tank is more prominent as it is located closer to the baseboard edge and is to the rear of the main focus of the MPD area, the trackwork between the shed and the turntable.  It is also adjacent to the coaling bank and as a result I decided to make this now and as part of the base for the water tank.

IMG_5873 (2)

The smaller of the water tanks is designed to mask a baseboard joint in a rockface/embankment.  The base (below) will thus be split into two halves when it is fitted, each sitting on adjacent boards – a neat way of not having the San Andreas fault line running through a rock face!

IMG_5889

I have also started the painting of these, which had a fairly characteristic design with the border in a red/brown and a cream central panel.  It is important to recreate this and as it is fairly eye catching, errors will be instantly visible.

IMG_5885 (2)

The straight edges weren’t too difficult to achieve with masking tape; initially the horizontals and then the verticals a day later.  Peeling back the masking tape was a thrill to see if it worked!

IMG_5806 (3)

The scrolls at the corner was a concern throughout the construction of the water tanks but I did hit on an idea I think is rather nifty.  I sprayed the same red/brown on some transfer paper (thanks Chris!) and once it was dry, used a domestic hole punch to create disks of transfer.  I then cut them into segments that were a bit bigger than a quarter of the disk.  They were then applied as a transfer to each corner.

IMG_5911 (2)

Actually, it was pretty easy once I got going – I definitely spent longer thinking about it than I did doing it!  I am pretty pleased with the outcome, much neater than my hand could manage!

IMG_5909 (2)

The rather prominent hole in the coal bank will be the subject of a future post, as there is something a bit different planned for this!



Alnabreac Water Tower – the Prototype

The smaller of the two water towers I am building is a model of the tower that the Highland Railway built at Altnabreac.  Altnabreac is around 12 miles from the nearest paved road so even though it has not been used for approaching 60 years, it has proved too expensive to realise its scrap vale.

IMG_0707 (2)

IMG_0703 (2)

What is possibly even more remarkable, you can see the paint – including the detailing at the corners – which probably dates from the LMS era; how much original pre-1948 paint is still out there?

IMG_0699 (2)

Being able to get up close to the tank, it can be seen that it is made out of sections; there are quarter segments for the corners and then straight panels for the sides.  They obviously came as a kit of parts and could be built to a size to suit the requirement.  Thus, I note that the Altnabreac is the same width wide as the Kyle tank was deep – so I can determine how many panels were used to make the Kyle version.  Whilst the lines are fient, they are there and I will replicate them with a hint of a score on the plasticard.

IMG_0706 (2)

A float inside the tank was used to transmit the water level to this gauge on the exterior.

IMG_0697 (2)

The tank as a whole is remarkably intact – the only elements I can positively identify is missing is the delivery bag which will have been of hessian and the wooden windows. However, I suspect there are two other elements that have now been removed.  There was probably an access ladder at one end to reach the interior of the tank but leaving it in situ would to be dangerous, hence its removal. Furthermore, there is no sign of any heating to the tank. Whilst the largish body of water will have taken a while to freeze, the region around Altnabreac is well-known for its cold temperatures so I suspect there is a boiler inside with a flue through the tank.  The outlet valve is controlled by a wheel at low level connected with a rod with a thread at its head. This connects to one end of a lever that has a threaded nut in order to transfer the movement into the interior of the tank where the valve is located.

IMG_0700 (2)

IMG_0702 (2)

A drawing of the water tank can be found at this link: Altnabreac Water Tower  or if you are a member of the Highland Railway Society it will be in the next Journal and subsequently from their drawing service.

The other water tank I am building is a model of Kyle of Lochalsh’s water tank.  Eddie Bellis drew this and his drawing is in the November 1975 edition of the Railway Modeller.  There are couple of pictures of in LMS Engine Sheds: Volume 6 by the Oxford Publishing Co.  The only other Highland Railway water tower that has been drawn that I know of is Garves, which Henry Orbach drew – it is in a 1950s Model Railway Constructor or was reprinted in my fathers The Dingwall & Skye Railway.

Dingwall & Skye

Let there be water……..part 1

Part of the concept of the back-story for Glenmutchkin is that it is at the end of a long line so that locos need to be serviced and it was also at the foot of a steep gradient, so trains need to be banked out of the station.  All this is creates a lot of thirsty locomotives that would have needed servicing and attention – so it will have a busy motive power depot.

The Highland Railway’s water tanks tended to be of a similar style with a tank made of sectional components and rounded head, base and corners.  There is nothing available from any of the manufacturers so it was obvious these need to be scratchbuilt.

There remains one tank of this type still in situ, at Altnabreac which I will describe in the next post.  In addition to this, there are drawings from Eddie Bellis of the Kyle’s water tower and also of Garve by Henry Orbach.  I have elected to build a pair – one of Kyle and one of Altnabreac (the latter being the smaller).

018 HR Water tower Kyle of Lochalsh engine shed 11-05-63 (John Boyes)ARPT 001

Kyle’s water tank from the early post steam era.  Photograph with permission from Armstrong Railway Photographic Trust, JM Boyes collection.

Starting with the tanks, I laminated a series of strips of plasticard to the right height and then used a belt sander to put the chamfer on these before then making them up into a box.

IMG_5290 (2)

IMG_5292 (2)

As with most of my stone buildings, I use Wills random stone plastic sheets; now available from Peco.  On far too many occasions I see this used with panels butted against each other; either on corners or even worse on the flat.  Unless the stones are toothed into each other, this screams as being incorrect even to a layman.  Therefore, it is best to form corners either from a sheet cut vertically and then chamfer the inside faces so that the coursing is retained for its full length even on the cut face.

IMG_5316 (2)

This means that courses line up from side to front without any silly jumps, as can be seen below.  This technique can not be used in all examples and sometimes it is necessary to actually tooth panels into each other by cutting corresponding dog teeth into adjacent panels.

IMG_5326 (2)

I find that the mortar courses on Wills sheets are a bit too deep and because lots of others use it its pattern is a little too obvious; so it looses its realism (or maybe I am just so sad that I can tell a material by its stone coursing!!).  I get over this by part filling the mortar courses with a plastic filler – which is basically dissolved plastic in a solvent carrier (lovely and smely!).  This tends to distort the sheets as it is only applied to one side so I first laminate the sheet to some thick (1.5 or 2mm plasticard).  Due to the volumes of solvent to be sloshed around in constructing buildings in this manner, it is important to allow for the solvent to escape – regretfully I have a number of coach roofs which many years later have mushy sections where the solvent has been trapped and has distorted the plastic in its efforts to cut through it and escape!  I thus drill regular holes or slots in the backing plasticard, which you can see here:

IMG_5297 (2)

Whilst the desire to mask the coursing pattern on the Wills sheet might seem a fair amount of bother given the need to reinforce the walls with an inner laimanate, I think the effect is worth the effort.  A blast of grey primer shows that the coursing and texture of the stone is retained but equaly it does not look like everyone else’s!

IMG_5332 (2)

The use of the laminations does give the advantage that slots for window frames and doors can be created.  These allow an etching to be slid in, either from below or behind.  They can be slid out again for painting and make this aspect a breeze to do.

IMG_5327 (2)

And this is where they have got to; the guts of both done but with a chunk of detailing and some basework still to be done.

IMG_5338 (2)

But lets sign this post off with a fine HC Casserley picture of a Superheated Goods using the MPD as a headshunt in the early 1950s.  This photograph is used with permission and is now part of Ernie Brack’s collection.  He has a substantial on line collection of photographs (including the JM Boyes collection) with a good proportion of them being of the Highland’s system – you can loose many an hour in his flickr site – this being a link to his Dingwall & Skye album.

1952-04-22 HR Kyle of Lochalsh, 57955 HC Casserley img606 (3)







A Ransome & Rapier Crane

Readers of this blog will recall that my father has a significant interest in breakdown cranes; he has published a series of books on them and is the honoury president of the Breakdown Crane Association.   As a result of this, a few years ago, he took a call from Bachmann when they started to research the possibility of filling a gap in the ready to run scene for a accurate breakdown crane.  He delighted in being sworn to secrecy on this until the model was announced and now, some five years later, it has finally arrived on the shelves.

So after a somewhat unsatisfactory retail experience with Rails of Sheffield (which I won’t be repeating, there are plenty of other retailers out there), an example of a Ransomes & Rapier 45 ton crane arrived not much more than a couple of hours spare so that it could be parcelled up in its Christmas wrapping for my father.  Now that it has reemerged, it is time to take a look at it.

DSC00133 (2)

Prototype

The prototypes originate from the early years of the last world war and were initiated by the British Government; in part in anticipation of a lot of emergency repairs being required following enemy action and also for use on the continent once a toehold had been achieved.  Initially a total of six were made, going to the SR and GWR but subsequently a further order of nine were made, mostly for the military but with a couple for the LNER and another for the SR.  The example I bought being from the latter batch, being initially based in Gorton on the ex GCR system.

ransomerapier45tonsteamcraneds1580ropley23rdjanuary2016

There were detail differences, with many of the railway company vehicles utilising standard components from their eventual owners.   The valve chests for the cylinders moved to the exterior in the later batches and the operation of the loading of the relieving bogies became hydraulic latterly.  The biggest changes, however, related to the match wagons where there was both variety of arrangements of tool boxes at the time of building and generations of modifications thereafter.

ransomerapier45tonsteamcraneds1580ropley23rdjanuary20162 Carl Watson

The cranes lasted until the mid 1980’s and a number of them survive in preservation, so if you want to see the real thing you might want to head to the Midhants Railway (on which the prototype photographs were taken and reproduced with kind permission of Carl Watson), the Bluebell Railway, the Great Central Railway, the North Yorkshire Moors Railway or the Swanage Railway.   Below is a link to a video of the Midhants crane in action:

Model

The first thing you notice with the model is that it is some way from the toy train end of the model train market.  The prototype is smothered in detail; with the fine bracing between the sides of the jib, the gear trains, axleboxes and flywheels all being a bit out of the ordinary for the ready to run market.  Bachmann have had a really good go at this and for the greater part they have got it right – very few could model a crane as well as this.  There are, however, several compromises made to enable them to be operable.  This particularly shows at the bearing points at the head of the jib (exposed metal when they shouldn’t be visible) and on the crankpin nuts to the flywheels (way too big and hexagonal).  I understand why this was done, but it sticks out to my eyes!  Some touching in of paintwork will help (but not be perfect) and the replacement of nuts with something more subtle should be possible.

DSC00135 (2)

The detail is very delicate and the model needs to be handled very carefully as a result.  Even the most careful (and I don’t count myself in this group) are unlikely to keep all the detail in place on any model that does not merely sit in the display cabinet.  With a recommended retail price of £250, substantially more than any other product that is not filled with motors & electronics, it is doubtful that too many will end up in the hands of children – maybe that is just as well!

The model I bought, the early BR model in black – Bachmann ref SKU: 38-802, has a match truck without tool boxes.  This is correct for the specific crane post the early 1950s but what is not is the missing insides to the splashers.  This seems to be a compromise to accommodate OO wheelsets without making the splashers excessively deep.  It is easy enough to fill in the open spaces if you model in one of the wider gauges and it will make a big difference.

DSC00139 (2)

The painting and livery is particularly fine on the model.  Even better there are some exquisitely delicate etched plates that can be applied on top of some of the plates.  I suspect I see the shadow of Mr Hanson on them.

Options

It looks realistic to get P4 wheels into the crane underframe and definitely so for the runners/match wagon.  I would, however, be concerned as to whether a four axle vehicle could survive all but perfect track in P4 and how many of us have that?  I suspect that it will all be very tight too, so some pretty large radius curves would be needed if a P4 model can get around them.  Of course I will have a go, but it is not high on the to do list at the moment!

DSC00140 (2)

I think it is only a matter of time before someone looks at trying to motorise the crane.  I think I will say good luck to them!  Getting micromotors in might be possible for at least movement along the track but that still leaves slewing of the crane deck, raising of the jib and raising of the hook to go – getting another three in looks pretty difficult to me!  The model does include internal hand operated mechanisms for the latter two movements – there are access panels that pop out to reveal a socket to receive a hand wheel.   Thus, it is realistic to stage scenes, but not (in my eyes anyway – I really do look forward to someone having a go!) to make a fully operating model.

DSC00136 (2)

What is a must though is to add the paraphernalia of clutter the real cranes acquired in operation.  Photographs show that they typically attracted lumber sections, jacks, chains and tarpaulins as if they were magnets.  Cranes, not being front line stock in the public eye, tended not to suffer repaints very frequently and as they stood outside, they did weather and pick up corrosion spots.   So any self respecting modeller needs to do something about how clean they look.

Although there is a very long in the tooth model crane from Hornby, it is somewhat of an uncomfortable marriage of several different cranes (the really old Hornby Doublo diecast version is better but quite crude), so does not cut the mustard.   There are a limited number of kits for other cranes – notably the D&S Models Cowen Sheldon 15 ton breakdown crane (an example of one might grace these pages eventually!) but these are full on kits.  Thus Bachmanns cranes are not only attractive models in their own right but they have a field fairly clear of competitors.

untitled

If you want the book on the prototype you need volume 2 of my father’s book – at present it is out of print but it is hoped with a bit of pressure on the publishers, Crecy, they can be persuaded to do a further print run.

The Bachmann crane is presently available in an SR livery, a GWR livery and then a pair of BR liveries – the 1950s livery shown above and a later gulf red livery.  An example of the latter is below:

IMG_4643 (2)

PSPS

Paddle Steamer Preservation Society

Roger Farnworth

A great WordPress.com site

Penn Central Hitop Secondary Model Railroad

The building, history, and operation of my HO scale Hitop branch model railroad

Enterprising Limpsfield @ The Bull

a community hub in the heart of Limpsfield

Staffordshire Finescale

railway modelling group

MrDan's Model Musings.

Model railroad, prototype, historical and other random musings.

Edinburgh Princes Street

An interpretation of the passenger facilities of the former Edinburgh Princes St railway station

Dominion & New England Railway

Building an achievable transistion era O scale layout

A Model Meander

[mee-an-der] noun: a circuitous movement or journey.

Yeovil Model Railway Group (YMRG)

Making The Biggest Layouts That Will Fit In Our Huge Clubroom - since 1974

Central Vermont Railway

MODELLING MUSINGS ON PORTCHULLIN, GLENMUTCHKIN AND ANYTHING ELSE THAT TAKES MY FANCY

Chris Nevard Model Railways Blog

MODELLING MUSINGS ON PORTCHULLIN, GLENMUTCHKIN AND ANYTHING ELSE THAT TAKES MY FANCY

A Model Railway - Life in Miniature

MODELLING MUSINGS ON PORTCHULLIN, GLENMUTCHKIN AND ANYTHING ELSE THAT TAKES MY FANCY

Michael's Model Railways

MODELLING MUSINGS ON PORTCHULLIN, GLENMUTCHKIN AND ANYTHING ELSE THAT TAKES MY FANCY

Two Bolt Chair

4mm finescale modelling, slowly

Model Railway Musings by D827 Kelly

Model railway planning, design, building and other things related

Pembroke:87

Modelling the Canada Atlantic Railway in Pembroke in Proto:87

southpelawjunction.co.uk/wp/

- A HISTORY OF THE TYNE DOCK TO CONSETT RAILWAY -

Liverpool Range

Modelling a small section of the New South Wales Railways between Kankool and Pangela

highland miscellany

MODELLING MUSINGS ON PORTCHULLIN, GLENMUTCHKIN AND ANYTHING ELSE THAT TAKES MY FANCY

Great Western Railway Review

Recording and reporting articles and items of interest relating to the Great Wwestern Railway of Brunel, Goocg, Churchward and Collett et al and to modelling it in 4mm and 7mm scales.

Matt's Railroad Blog

Minnesota themed model railroading

GrahamMuz: Fisherton Sarum & Canute Road Quay

The model railway world and mainly Southern meanderings of Graham 'Muz' Muspratt

Gene's P48 Blog

Quarter-inch Scale Modeling
