Dia 51 Test Build – Fox Heavyweight Bogies

After the painting disaster, I have been working on the latest version of the Fox Bogies.  The prototype utilised a patented design with pressed steel plates to form the sides and ends which produced a stiff and resilient frame, better than the other contemporary options.   Thus these bogies were very common amongst the pre-grouping companies with most of using them to at least some degree.

Although there are several model manufacturers that produce Fox bogies, there are no versions that use springing which I now prefer.  As they were the primary form of bogie used by the Highland Railway, I need a few of them and thus I have been putting some effort into getting a top notch solution.  In this regard, I have been assisted greatly by Justin Newitt if Rumney Models whose design of sprung bogie has formed the basis of this.

IMG_0416 (2).JPG

The model has primary suspension on the pin points based on guitar wire springs,

IMG_0509 (2).JPG

In addition to this, the design has a sprung bolster, also based on a guitar string suspension.

IMG_0442 (2) IMG_0445 (3)

The castings I have used on these are from Lochgorm Models and the design has been conceived to enable these to be used either retaining their dampers (the cylindrical appendage at the end of the leaf springs) or with replacements  that are a little more defined.

IMG_0525 (3)

The etch is also designed to be provided with full stepboards as below or with only a short section to one end – as they typically were converted to during their life.

IMG_0534 (2).JPG

There is full brake gear provided, with a little trick where they do not pass under the axle (remember this view is upside down!) – this enables the wheel to be removed if this is required.

IMG_0529 (4)

This is not the first version of these (don’t accuse me of not test building my designs!) and they are very close to done.  The final change is to adjust the primary spring hangers slightly so that they are not visible when they are depressed (you can just see it poking above the sides in line with the axlebox),  The advantage of computer drawn artwork is that things like this can be changed relatively easily.

These, and indeed the rest of the dia 51 full brake, will be made available for sale quite soon.

Previous parts to the test build can be found here:



Advertisements

Dia 51 Test Build Part 3 – and then there were two…..!

Following the first test build of the dia 51, I took account of what I had learnt from this and completed various amendments to the artwork.  There was nothing truly major, so I was fairly confident that the corrections would get the model to the point where the artwork was done.  But of course, to prove this, another test build was required and this is where we got to………..

_DSC0030 (2)

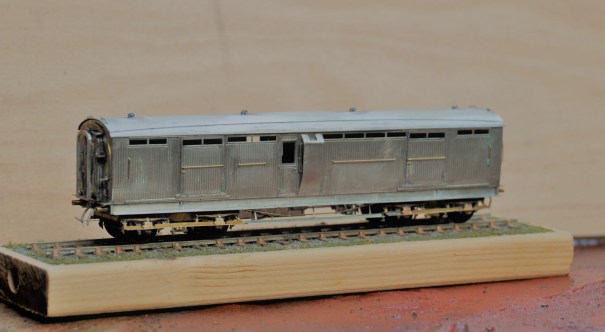

And this is what it looks like……..quite handsom I think and certainly quite differnt from all the pother stock I presently have.

The eagle eyed will spot that the vehicle is slightly different in that this one has sliding doors, whereas the previous had cupboard doors.  The kit is intended to cover both options and does successfully do so.

_DSC0029 (2)

The ducket also has cut outs for a lamp at its head (a feature of Highland duckets).  This proved quite challenging to model and I will avoid doing it again because it seemed to fall out of favour prior to the end of the Highland era so having only one or two would be right for my timeframe.

There remains a bit more work on the bogie to do; they can be made up to work very well but are a little more difficult to build than I had hoped.  Once this is cracked, I will be making the dia 51 available for sale.



Dia 51 Test Build – Part 2: Nearly There

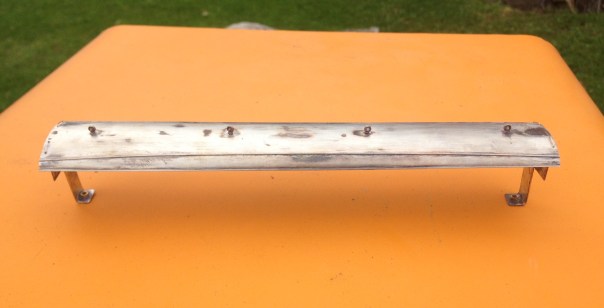

I no longer affix roofs firmly to the body of my coaches as makes both the building and the painting much easier.  The downside of this is that there is the challenge of keeping the roof on tight without there being any visible joint between the two as this looks terrible.  The solution I now use is to clamp this to the floor with 10BA bolts by way of brackets as can be seen in the photograph below.

IMG_3928 (2)

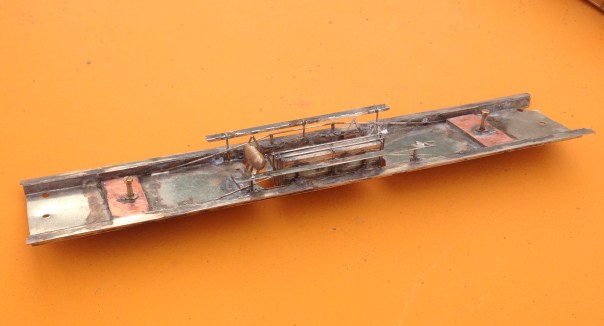

As built, these coaches had full length step boards but they lost most of these through their life.  They were electric fitted from the outset.  The chassis below is close to finished except I have run out of vacuum cylinders so these will need to be added, along with the vacuum pipes.

IMG_3921 (2)

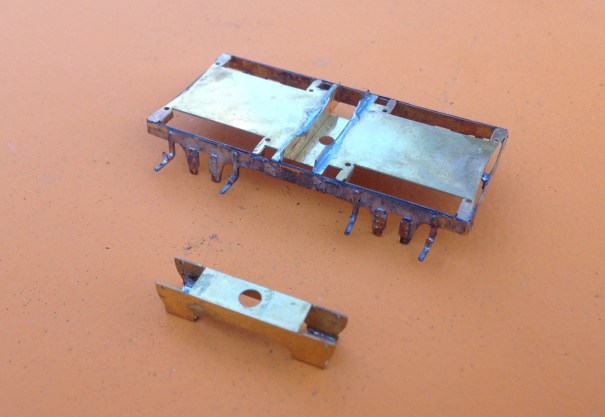

The bogies are also a key part of the proposed kit and are something that I have been working on with Justin Newitt of Rumney Models – the idea being to combine the sprung bogie design that he has prepared with cosmetic etches for the sides and then the castings from Lochgorm Models or perhaps our own in due course.  The bogie is quite sophisticated with both primary and secondary springing – the latter is on the bolster and is as below.

IMG_3920

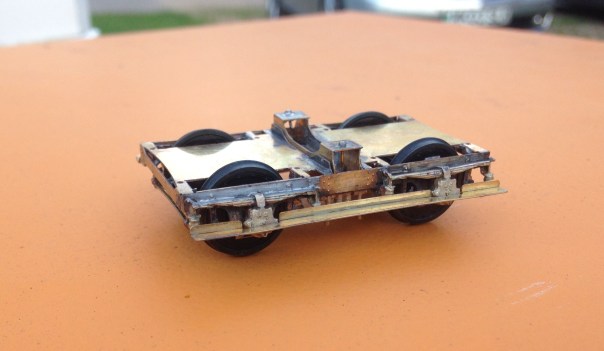

The primary springing is on the axleboxes and has bearing carriers, much like the Bill Bedford sprung W-irons.  There are still some wrinkles to iron out so it is not there yet but they do make up into some pretty neat bogies; don’t you think?

IMG_3915 (2)

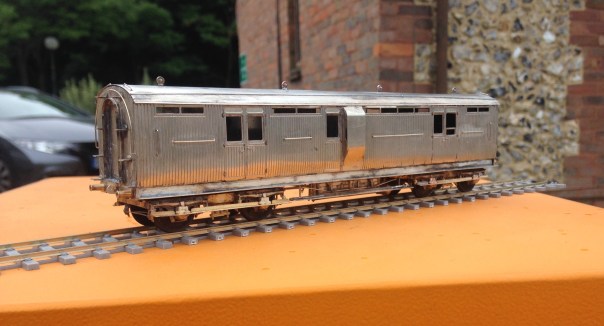

The only area of the first test build that truly did not work was the corridor connections and it is going to be a case of back to the drawing board for these but other than the final few bits to be completed, the build is finished and I think the vehicle is handsome.

IMG_3943 (2)

So, off to the paint shops soon, but there is a bit of a holiday to squeeze in first!

Dia 51 Full Brake – Test Build Part 1

Following the last delivery from the etchers, it was time to get on and do the first test builds.  First up was the dia 51 Full Brake.  This vehicle was one of the later coaches from the Highland Railway and was of similar design to the cove roof corridor coaches that have been available from Lochgorm Models for some time.  They were also amongst some of the last highland coaches to service as tool vans etc.  This is what one looked like late on in its career after its corridor connections had been removed.

HRDiag50

As with my efforts for the scrap tank, I am seeking to try and be a bit smarter with some of the kit design to draw together ideas of assembly of my own and also those of others.  So starting with the ends, these will be made with a double skin to both provide the footsteps and, less commonly, some tabs to allow the sides to be secured to them.

IMG_3485

I have always found that too many etched coaches have flimsey sides that become distorted as they are made (or when ham-fisted me does anyway).  Therefore,  I have designed this such that the head and base of the side have significantly sized stiffening pieces, as can be seen below.  These are designed to interlock with the tabs at the ends such that most of the locating of the parts is largely defined by the kits components.

IMG_3491

Once the basics of the shell are together, this is what it looks like.

IMG_3499

The roof proved to be one of the most challenging parts of the build.  I had originally designed this with an inner to form the shape of the roof and then a thinly etched outer layer to go over this to provide the rainstrips and other detail.  It proved too difficult to get the two to laminate well or even be rolled to a similar curve.

Instead, therefore, I ditched the outer layer and relied only on the inner.  This had been half etched on the underside to assist its rolling to the curved profile.  I found that it was still difficult to roll the roof due to the tightness of the curves at the extremity of the roof but by simply using bending bars it was quite easy to put the curves in with a limited amount of faceting.  Faceting is where short straight sections with bends to the next short section that gives the impression of a curve.  Once this was then filed on the outside to smooth out the facets, a smooth curve became pretty good.  Thereafter, it was necessary to form the rainstrips with wire and file them back to square sections and as you can see, the effect is pretty convincing.

IMG_3515

The underframe and bogies are to follow, in part 2.
